China introduces an all-optical supercomputing chip scheme based on CNNs

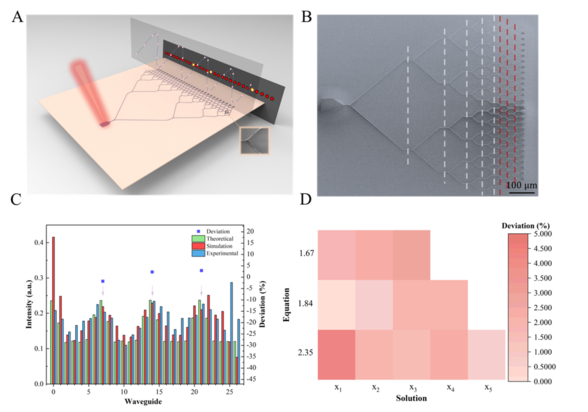

In a new publication from Opto-Electronic AdvancesDOI10.29026/oea.2021.200060, the research group of Professor Xiaoyong Hu and Professor Qihuang Gong from School of Physics, Peking University, China, propose a new strategy to realize an ultrafast and ultralow-energy-consumption all-optical supercomputing chip scheme based on convolutional neural network (CNN), which supports the execution of multiple computing tasks. All-optical transcendental equation solver. (A) schematic diagram of the all-optical transcendental equation solver. (B) Top-view SEM image of the all-optical transcendental equation solver, where the scale bar is 100 μm. Here, the white dotted lines mark the five layers for waveform discretization, and the red dotted lines separate the three layers of the optical CNN structure. (C) Output light intensity distribution in the output waveguides (k = 1.67). The arrows in the figure correspond to the locations of the solutions. The horizontal axis is the number of discrete waveguides, the vertical axis on the right represents the output signal intensity, and the vertical axis on the left gives the deviation between the experimental output signal and the theoretical value. (D) A graphic representation of solution deviation. The horizontal axis labels the individual solutions, and the vertical axis represents three values of the parameter k. The shade of the color indicates the magnitude of the deviation. Full size

With the rapid development of advanced engineering computing, economic data analysis, and cloud computing, the demand for ultra-high-speed and energy-efficiency supercomputing is growing exponentially. Due to the limited data communication bandwidth between memory and processor, the inherent RC delay of the integrated circuit, and the heat dissipation caused by resistance loss in the electronic circuit, the dominant computing platform, namely the traditional electronic signal processor under von Neumann architecture is difficult to achieve high speed and low energy consumption at the same time.

All-optical computing using photons as an information carrier provides a potential alternative to the traditional electronic signal processor. However, there is an inherent trade-off that the larger nonlinear coefficient can only be at the expense of the slower response time. This trade-off poses a major challenge to the construction of integrated photonic processors based on von Neumann architecture, which usually requires complex heterogeneous integration of various photonic devices in a single chip. Therefore, it is urgent to explore new architecture and unconventional all-optical supercomputing schemes.

The research group of Prof. Xiaoyong Hu and Prof. Qihuang Gong from the School of Physics, Peking University, proposes a new strategy to realize an ultrafast and ultralow-energy-consumption all-optical computing chip scheme based on a convolutional neural network (CNN), which supports the execution of multiple computing tasks. The optical CNN consists of cascaded silicon Y-shaped waveguides with side-coupled silicon waveguide segments designed to control the amplitude and phase of light in the waveguide branches. As a proof-of-concept, they experimentally implemented the network design through several computation tasks including transcendental equations solvers, multifunctional logic gate operators, and half-adders. The time-of-flight of light through the network structure corresponds to an ultrafast computing time of the order of several picoseconds with an ultralow energy consumption of dozens of femtojoules per bit. Their approach can be further expanded to offer the possibility of parallel computing using wavelength multiplexing based on non-von Neumann architectures and thus paves a new way for on-chip all-optical computing.
cos2kx+4=tan(kx)

For example, a transcendental equation solver has been achieved to solve the above equation with high accuracy with a maximum deviation of less than 5%, and in most cases, the deviations are less than 3%. The accuracy of the solution can be improved by increasing the number of output waveguides in theory. Besides excellent solution accuracy, the all-optical equation solver also features ultrafast (The time-of-flight of light passing through the characteristic structure is ~1.3 ps) and energy-efficiency computation (~92 fJ/bit ). Stability analysis of their network further demonstrates its high fault tolerance to defects such as weight deviation and waveguide damage. This work, therefore, points to a promising direction for next-generation all-optical computing systems.
